RCL010-0250A 0-10V 108-305V Input 250 Ma For Discount

RCL010-0250A

Dimmable LED Driver

TRIAC & ELV Dimmers @ 120Vac

0-10V Dimmers

Manufacturer: Enedo

SPECIFICATIONS:
Input Voltage		108-305Vac
Constant Current		250 mA
LED Total Fwd Voltage Min		24.00 Vdc
LED Total Fwd Voltage Max		42.00 Vdc
Output Power		11 Watts

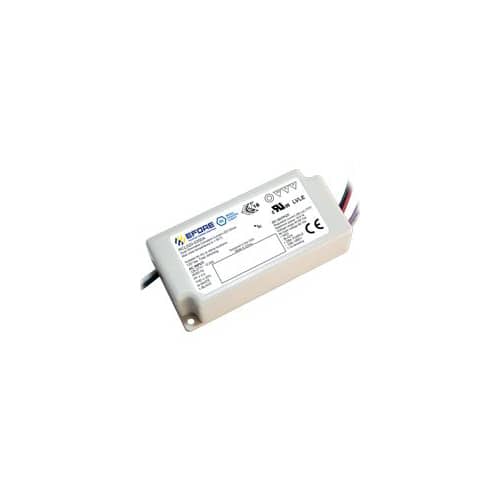

• Efore RCL010-0250A dual dimming LED driver

• AC input: 108~305Vac
• Dims with TRIAC and ELV dimmers (at 120Vac)
• Dims with industry standard 0-10V dimmers (108-305Vac)
• Top case temperature range: -30~+90°C (refer to top case measurement point)
• U8750 approved
• Class II isolation
• <20% THD
• PFC >0.9
• High efficiency
• Efore 5 year warranty

• TRC Electronics is the USA stocking headquarters of Efore RCL010 of dimmable LED drivers. Contact us for award winning service.
