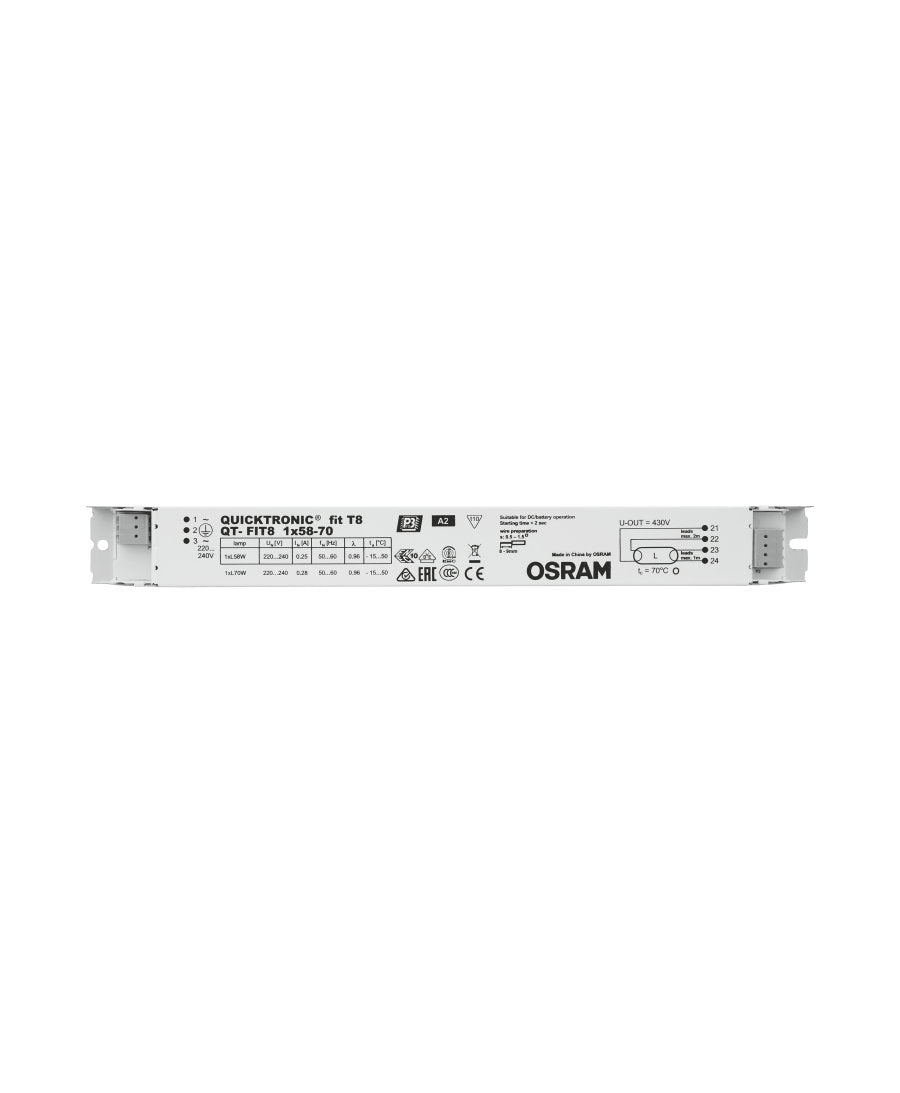

QT-FIT8 1X58…70 Discount

Length

280.0 mm

Width

30.0 mm

Height

28.0 mm

Mounting hole spacing, length

270.0 mm

Product weight

182.00 g

Cable cross-section, output side

0.5…1.5 mm²

Cable cross-section, input side

0.5…1.5 mm²

Temperatures & operating conditions

Ambient temperature range

-15…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 h

Additional product data

Suitable for lamp power (1 lamp)

58…70 W

Capabilities

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m 1.0 m

Dimmable

No

Certificates & standards

Approval marks – approval

VDE VDE-EMC ENEC 10 CE

EEI – Energy Label

A2

Standards

Acc. to EN 61347-2-3 Acc. to EN 60929 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547

Type of protection

IP20

Protection class

I

Logistical data

Commodity code

850410809000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4008321294227

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

553f952c-32f6-4842-beaa-87800b1b86b1

Packaging information

EAN		Unit		Piece		Dimension l x w x h		Weight
4008321294227		UNV		1		280mm x 30mm x 28mm		182.00g
4008321294234		VS		20		303mm x 132mm x 185mm		3853.00g

Downloads

Data sheets

Title	Default Title
