Name: Best & Cheapest 10.62 Osram QTP-DL 2x55 220-240 Online
SKU: EF9D84F7ECBF18B5
Price: 10.62 USD
Availability: InStock

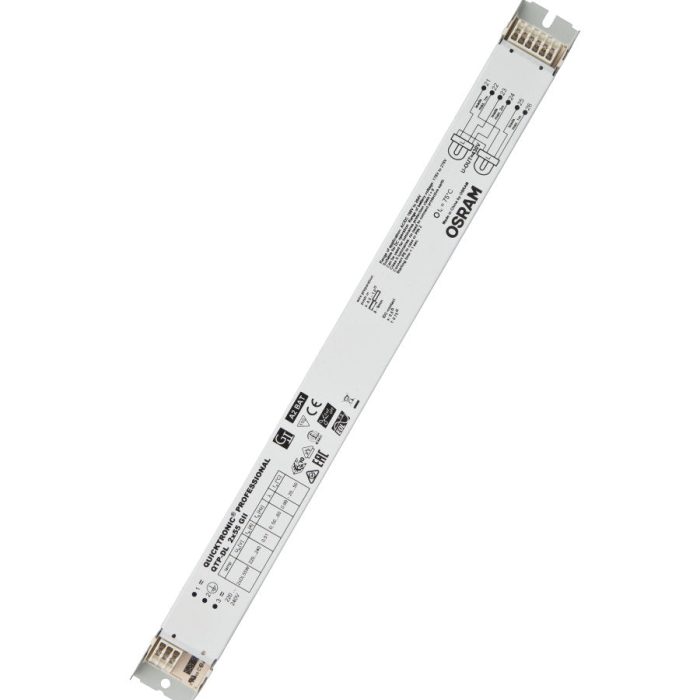

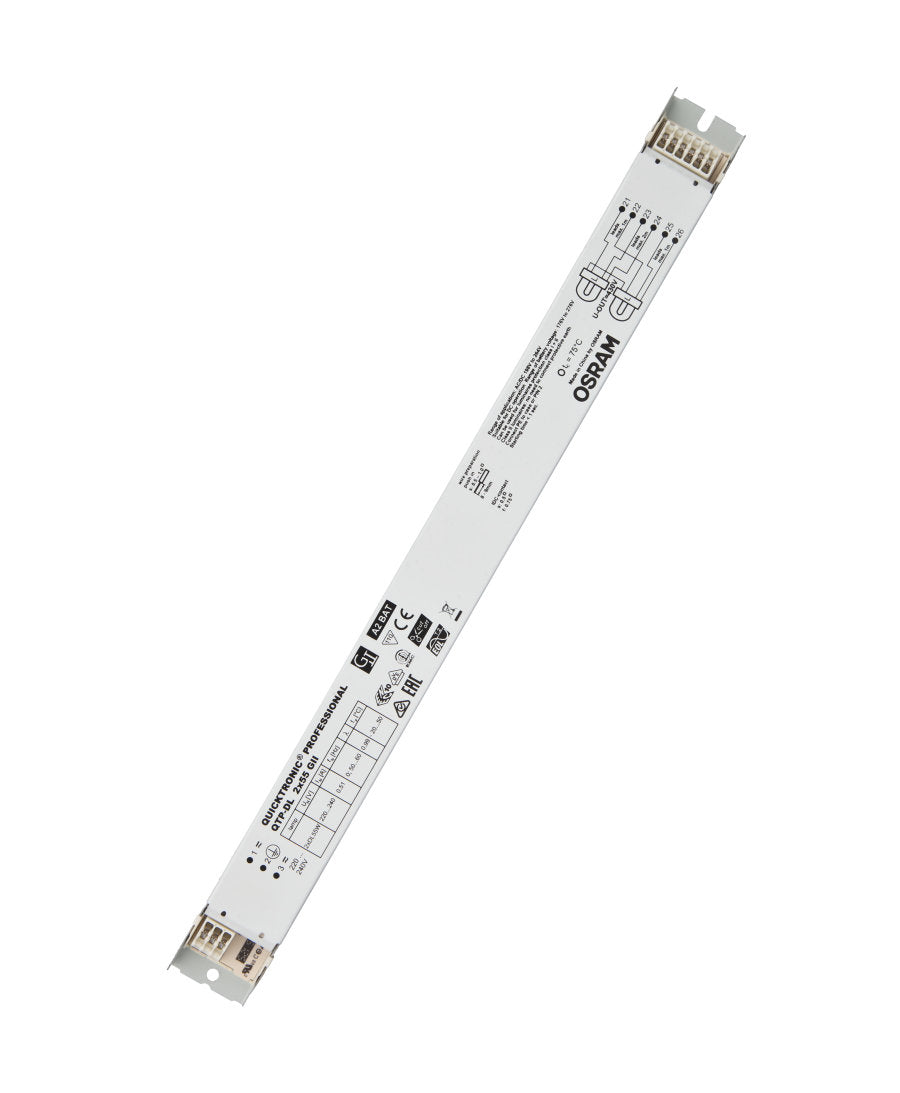

The Osram QTP-DL 2×55 220-240 is a non dimmable high frequency ballast to run 2 x 55w Long single turn PL-L compact fluorescent lamp.

Product family benefits

Long lamp life

No adverse effect from frequent on off switching

Automatic restart after lamp replacement

Perfect lamp start for applications with motion sensors

VDE VDE EMC certified system

Very high energy efficiency due to cut-off technology

Areas of application

Emergency lighting systems acc. to EN 50172 DIN VDE 0108-100

Open-plan offices, corridors and storage rooms

Public buildings

Suitable for luminaires of protection classes I and II

Data sheet

More downloads

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

176…276 V

Maximum output power

2 x 55 W

Efficiency in full-load

95 %

Operating frequency

40…50 kHz

Max. ECG no. on circuit breaker 10 A (B)

8

Max. ECG no. on circuit breaker 16 A (B)

13

Inrush current

28 A

Light technical data

Starting time

1.0 s

Dimensions & weight

Length

360.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

350.0 mm

Product weight

265.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 h

Additional product data

Suitable for lamp power (2 lamps)

55 W

Capabilities

Suitable for fixtures with prot. class

I II

End of lamp life safety shutdown

EOL T.2

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m 1.0 m

Dimmable

No

Certificates & standards

Approval marks – approval

VDE VDE-EMC ENEC 10 GOST RCM

EEI – Energy Label

A2 BAT

Standards

Acc. to EN 61347-2-3 Acc. to EN 60929 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547

Type of protection

IP20

Protection class

III

Logistical data

Commodity code

850410809000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

14-04-2022

Primary Article Identifier

4008321390172

Candidate List Substance 1

Orange lead (lead tetroxide)

CAS No. of substance 1

1314-41-6

Candidate List Substance 2

Lead

CAS No. of substance 2

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

65971722-45e8-4623-b17a-f93e23c6b0bd
