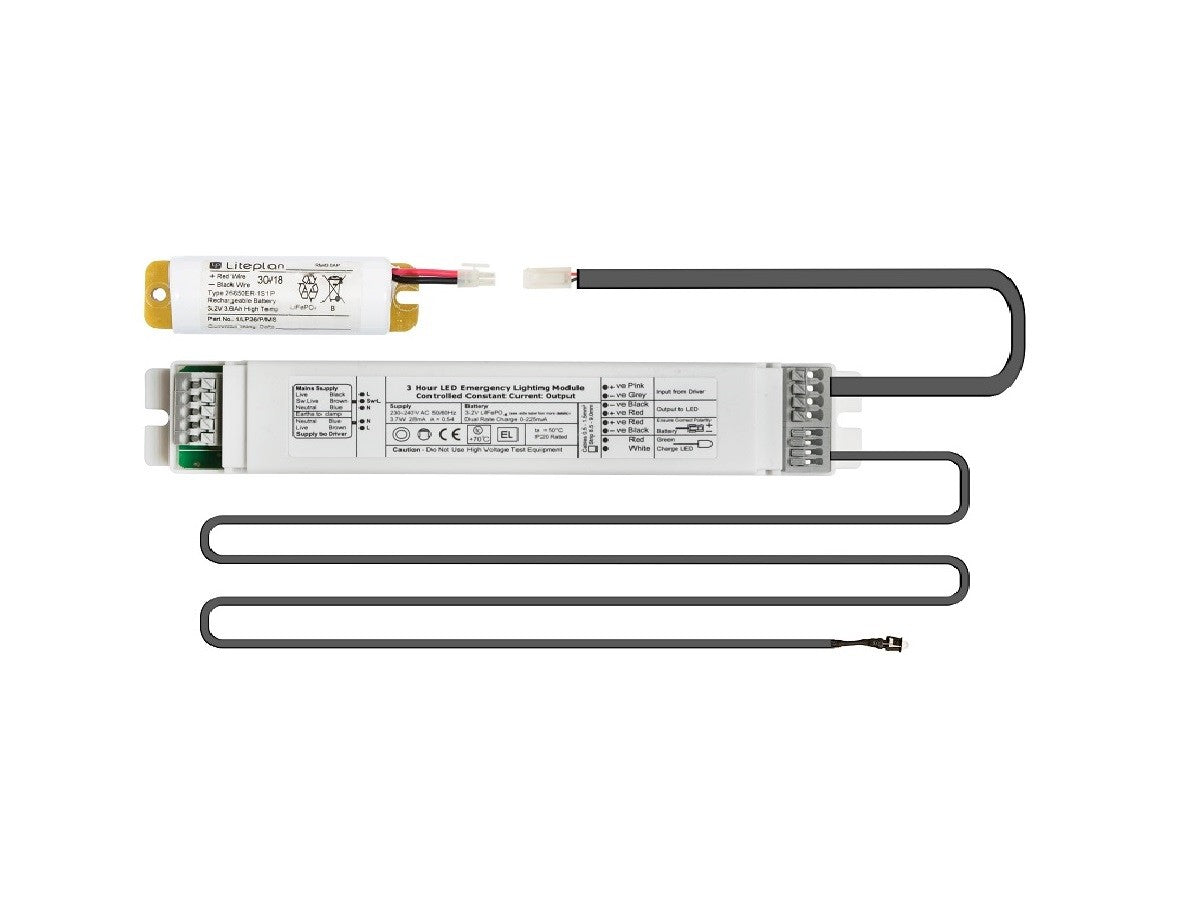

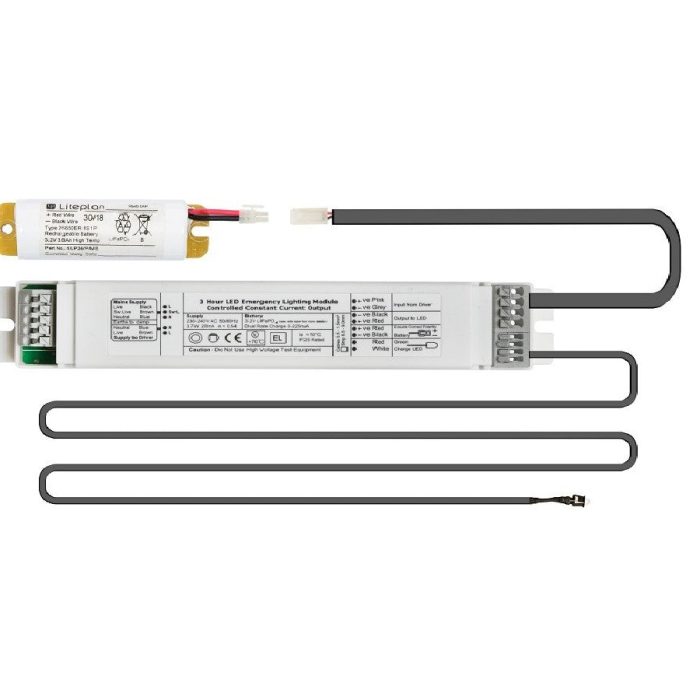

This item is obsolete, it has been replaced but the NLP 1, please see image. You will be supplied with the whole kit including the new battery. Please do not use the existing battery .
NLP 1 Basic Conversion
The NLP 1, is a high quality 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one with PCB terminal blocks, for internal mounting inside a luminaire, or a pre-wired version for mounting remotely from the luminaire where integral mounting is not possible. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour. Where space inside the luminaire is limited and the battery is deemed too tall, we are able to supply the NLP 1S 80. This is supplied with a slim LiFePO4 battery stick, ideal for slimmer luminaires. The NLP range has been independently certified by TÜV to ensure that the product, has been tested for safety and that it complies with the requirements of national and international regulations.

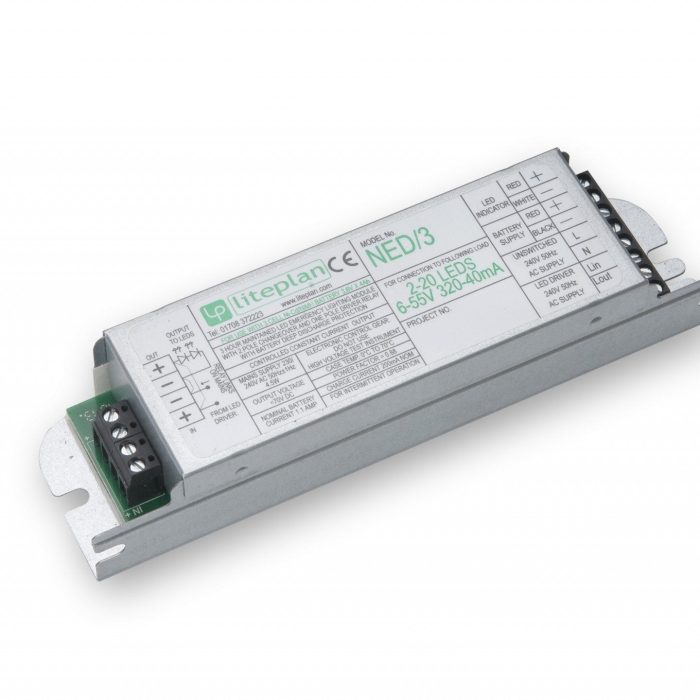

Liteplan Emergency Kit + Battery – NED 3-KIT
LitePlan NED 3-K Module, Battery and Charge LED Indicator from Lite-Plan
Model: NED 3 KIT
Liteplans NED emergency lighting conversion modules carry ENEC approval and BSI kitemark, and have been specifically designed to convert a wide range of LED types. This standard type NED 3 Kit is the natural choice for converting most standard LED luminaires and arrays, containing 2 to 20 LED chips in series. The NED range automatically adjusts to the output current to provide the best match between the battery and load, maximising illumination whilst ensuring great battery duration.
Technical Specifications
Control Gear Type
Conversion Module
Accessory Type
Ballast
Wattage
5W W
Manufacturer
Lite Plan
Dimming?
Non-Dimmable
Length
165 mm
Number of LEDs
2-20 (in series)
Type
Control Gear
Batteries
3.0V
Batteries
3.6V 4.5Ah NiCd
LED Voltage Range
6-60V
LED Current Limit
320mA
LED Voltage Limit
60V
Bat. Current Limit
1100mA
Mains Supply
230-240V AC 50 60 Hz
Charge Current
200mA Nominal
Recharge Period
24 Hours
Compatible Lamp Type
LED
Control Gear Technology
LED
Title
Default Title
