ELED-15-C150 700T Selectable Constant Current LED Driver 150-700mA Online now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Obsolete please order either of the below depending on the Ma you are using Â
If between 250 700Ma
https: www.easy-controlgear.com products eled-20p-c250-700t-constant-current-led-drivers-10-5-20-3w?_pos=8&_sid=8e6a3d564&_ss=r
If you are using less than 250Ma
https: www.easy-controlgear.com products eled-10p-c100-450t-series-constant-current-led-drivers-4-2-10w?_pos=1&_sid=daab3a194&_ss=r

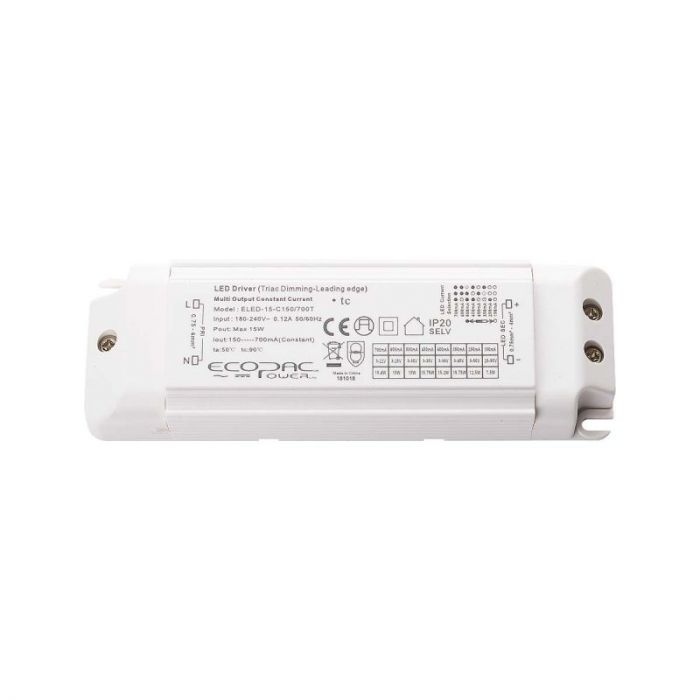

The Ecpoac Power ELED-15-C150 700T features the ability to select the output current required between 150mA and 700mA via a set of dip switches. This LED driver is also dimmable using triac dimming. Ecopac LED drivers are high quality at affordable cost and come complete with a 3 year warranty. Constant current mode output Multiple current levels selectable by dip switch Protections: Short circuit Over load Over Current Other features: Full protection housing IP20 design for indoor installation Cooling by free air convection Dimming function : Triac dimmable 3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 15 Output Current Selectable Dimmable (Type) Leading edge, Triac Output Voltage Range (V) 3-50V DC Output Adjustment 150-700mA Dimensions 140x 45x 28 (LxWxH) Mm EMC Standards Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV ) Input Voltage 180-240VAC Safety Standards EN61347-1, EN61347-2-13 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-15-CT.pdf
