EIP009C0250LSD1L – Eaglerise Constant Current Triac Dimmable LED Driver 9W-250mA PLEASE READ DESCRIPTION Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
This product is obsolete if ordered you will be sent the below please set at 250ma
https: www.easy-controlgear.com products eup12t-1hmc-o-triac-dimmable-constant-current-led-drivers?_pos=1&_sid=cbd539373&_ss=r

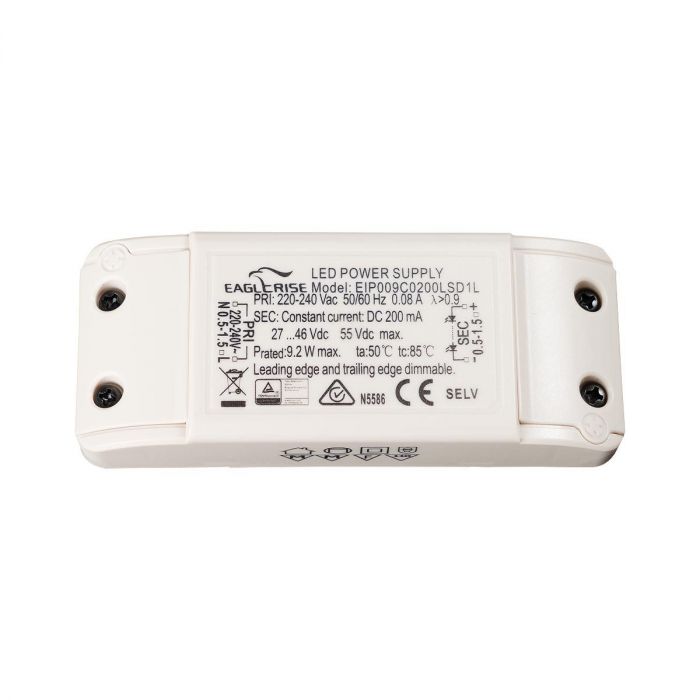

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current range 250mA 9W Features Short circuit, over load, over voltage & over temperature protection IP20 rated Power Factor ?0.9 Efficiency ?78% Class II, SELV Leading edge & trailing edge dimmable 5 Year Warranty
More Information Manufacturer Eaglerise Output Wattage (W) 9 Output Current 250mA Dimmable (Type) Triac Leading edge & Trailing edge DC Output Adjustment No Dimensions 105 x 42 x 24 mm EMC Standards EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C Input Voltage 220-240VAC Safety Standards EN 61347-1; EN61347-2-13 Output Voltage Options Single Working Temperature -10 ~ +50C PDF Datasheet EIP009CxxxxLSD1L.pdf
