CBH M Central Battery Driver with Hold Off For Cheap
22 people are viewing this right now
20 products sold in last 2 hours
Selling fast! Over 16 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The CBH unit is designed as a central battery driver with hold off (240V, 110V or 50V AC DC) to run 1-3 dedicated LEDs in emergency, with the output held off whenever the 240V AC un-switched supply is present. At the point the un-switched supply is broken, the driver will accept the feed from the central battery and power either one two or three LEDs in series at either 350mA or 700mA.
This unit is for intermittent use. If being used as a slave, this must be considered. The unit is not for permanent use.
- 50V AC or DC 1 LED at 350mA or 700mA (2.5V-3.5V)
- 110V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
- 240V AC or DC 1-3 LEDs in series at 350mA or 700mA (2.5V-10V)
-

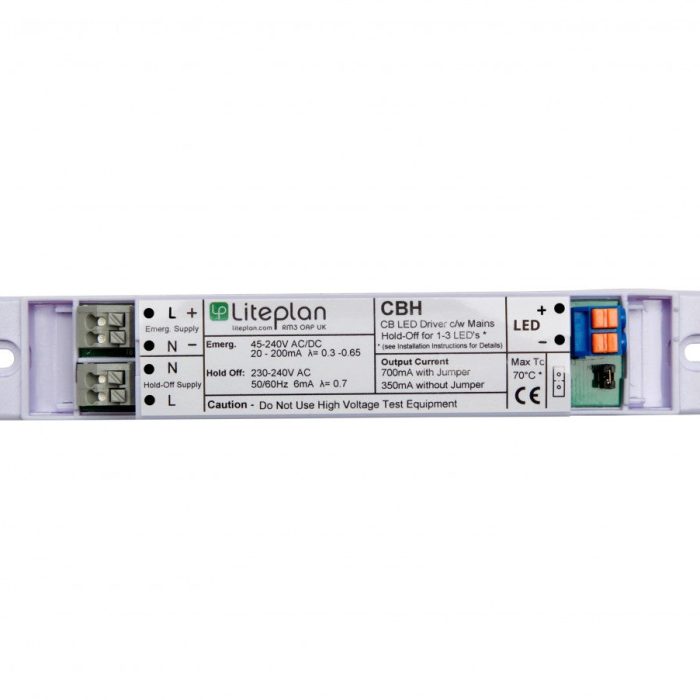

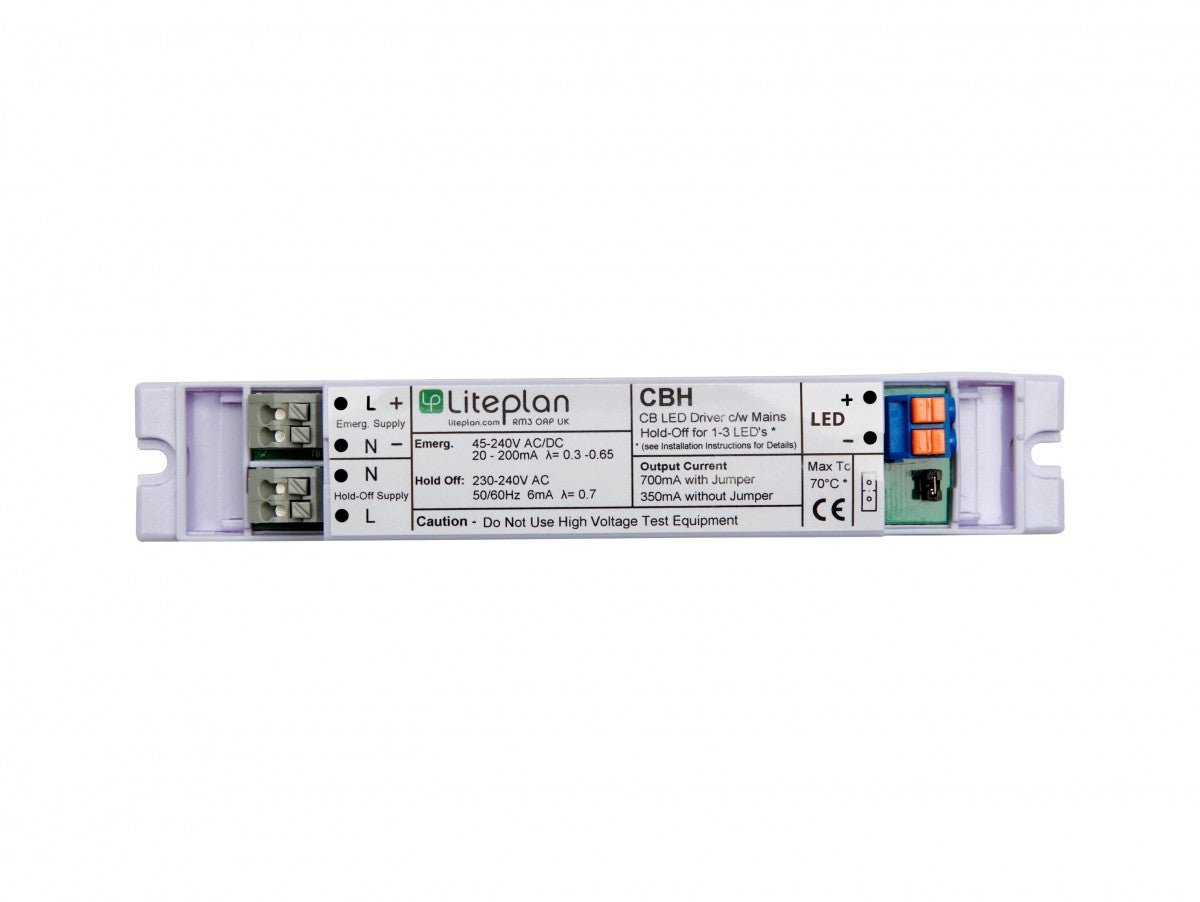

CBH Central Battery Driver with Hold Off
Datasheet
View
