Xylux LD5 Standard 9005382 XYLUX LD5 in White Online

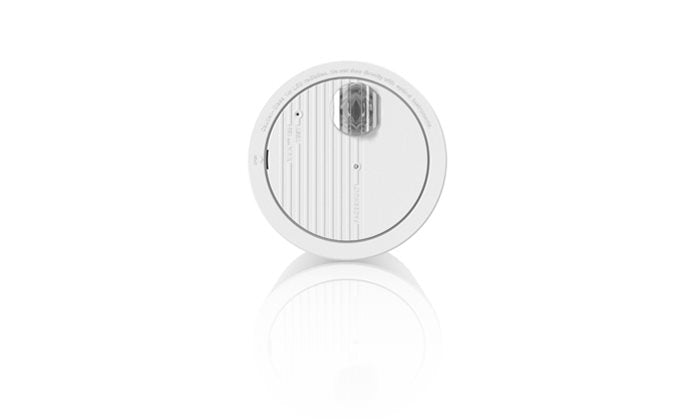

The XYLUX LD5 is a high performance self-contained LED emergency luminaire supplied with two snap-in optics for Open-Area and Escape Route distribution. XYLUX LD5 LED luminaire incorporates a LED module, a 3.6V 1.7Ah NiMH battery pack and a deep discharge protection circuit.

The unit can be surface mounted or recessed into a 105mm – 110mm cut out using mounting brackets provided. XYLUX LD5 offers an efficient alternative to the 8W fluorescent bulkhead.

Specifications

Supply voltage230 V

Supply frequency50 60 Hz

Supply current (max)35 mA

Power factor0.44

Total circuit power1.7 – 2.0 W

Battery charge current100 mA

Ambient temperature (ta)0°C to +35°C

Protection classClass II

Conductor size2.5mm² max

Emergency duration3 hours

Recharge period24 hours

Lumen output145 lm

IP ratingIP40

CCT>6300 K

Weight of luminaire246 g

Technology Options

Standard
For applications where self-testing is not required or suitable, the non-AutoTest® option provides the same quality and performance expected of Mackwell products, without the AutoTest® feature.
