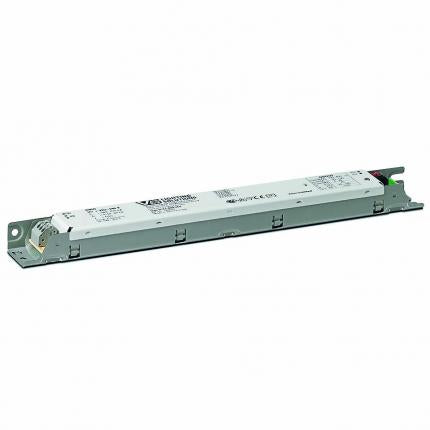

Vossloh Schwabe ECXe400.225 220-240V 186587 For Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ComfortLine LED Drivers – with Selectable Current Product features • Linear casing shape Functions • The required current output can be chosen by selecting the respective pin at the output terminal. Electrical features • Mains voltage: 220–240 V ±10% (allowed voltage range: 198–264 V) • Mains frequency: 50–60 Hz • Push-in terminals: 0.2–1.5 mm² • Power factor at full load: > 0.97 • Max. operation voltage without load (UOUT): 250 V • Secondary side switching of LED modules is not allowed. Safety features • Protection against transient main peaks up to 1 kV (between L and N) and up to 2 kV (between L, N and PE) • Electronic short-circuit protection • Overtemperature protection • Protection against no load operation • Degree of protection: IP20 • Protection class I
