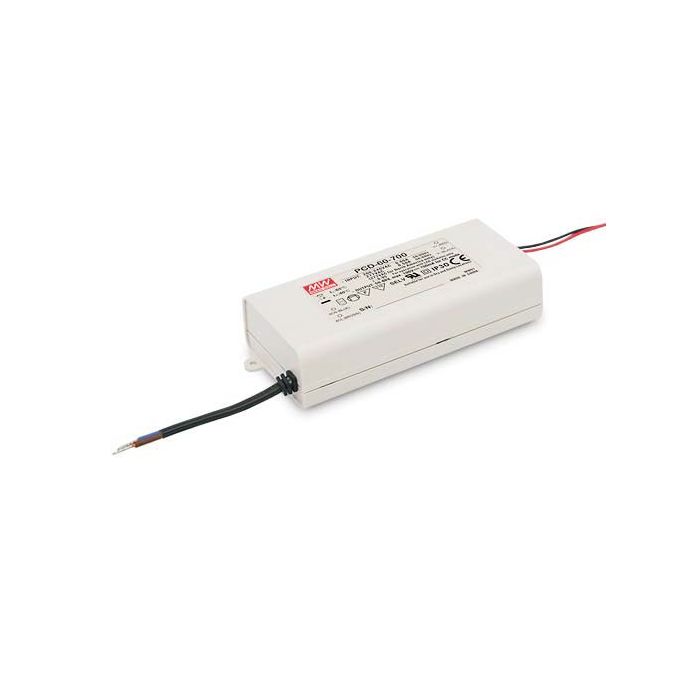

PCD-60-S – Mean Well PCD-60 Series LED Driver 58W – 60W 500mA – 2400mA Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
AC phase-cut dimmingWorks with leading edge and trailing edge TRIAC dimmersProtections: Short circuit Over temperatureOther features:180~295VAC inputConstant current designFully isolated plastic caseBuilt-in active PFC functionIP30 designClass 2 power unit Pass LPSIsolation class II, no F.G.Cooling by free air convection3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Output Current
Choose Option
Dimmable (Type)
AC phase-cut
Output Voltage Range (V)
50~86
Dimensions
128x 60x 31.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage
180~295VAC
Safety Standards
UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved
Output Voltage Options
Single
Working Temperature
-30~+50°C (refer to output derating curve)
PDF Datasheet
PCD-60-spec_2.pdf
