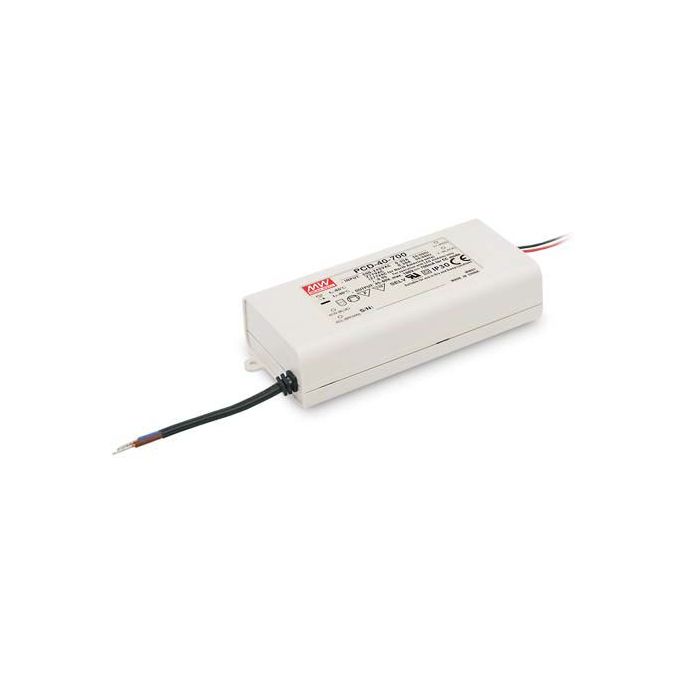

PCD-40-500B – Mean Well LED Driver PCD-40-500B 40W 500mA Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
AC phase-cut dimming
Works with leading edge and trailing edge TRIAC dimmers
Protections: Short circuit Over temperature
Other features:
180~295VAC input
Constant current design
Fully isolated plastic case
Built-in active PFC function
IP30 design
Class 2 power unit Pass LPS
Isolation class II
Cooling by free air convection
3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
40
Output Current
500mA
Dimmable (Type)
AC phase-cut
Output Voltage Range (V)
45~80
Dimensions
128x 60x 31.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage
180~295VAC
Safety Standards
UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved
Output Voltage Options
Single
Working Temperature
-30~+50°C (refer to output derating curve)
PDF Datasheet
PCD-40-spec_18.pdf
