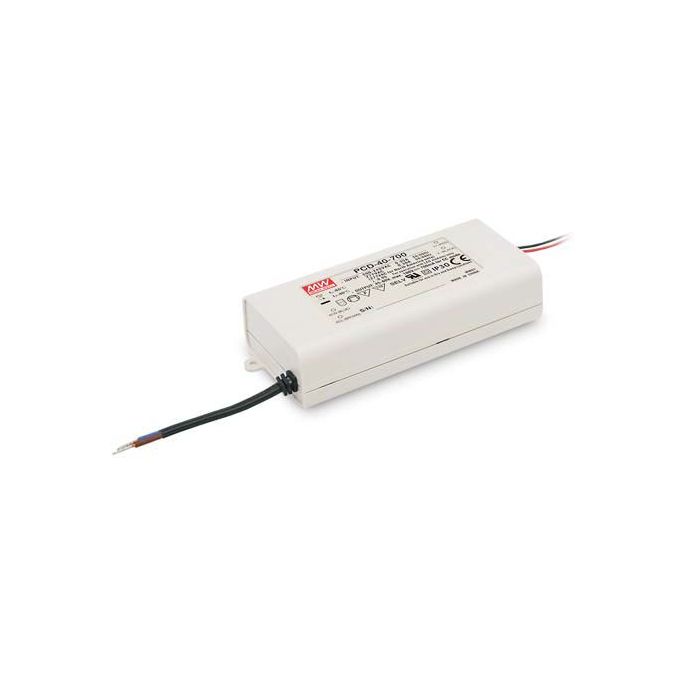

PCD-40-350B – Mean Well LED Driver PCD-40-350B 40W 350mA Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
AC phase-cut dimming Works with leading edge and trailing edge TRIAC dimmers
Protections: Short circuit Over temperature
Other features: 180~295VAC input Constant current design Fully isolated plastic case Built-in active PFC function IP30 design Class 2 power unit Pass LPS Isolation class II
Cooling by free air convection 3 years warranty
More Information:
Manufacturer Mean Well
Output Wattage (W) 40
Output Current 350mA
Dimmable (Type) AC phase-cut
Output Voltage Range (V) 65~115
Dimensions 128x 60x 31.5
EMC Standards Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
Input Voltage 180~295VAC
Safety Standards UL8750, ENEC EN61347-1, EN61347-2-13 independent,
IP30 approved
Output Voltage Options Single
Working Temperature -30~+50°C (refer to output derating curve)
