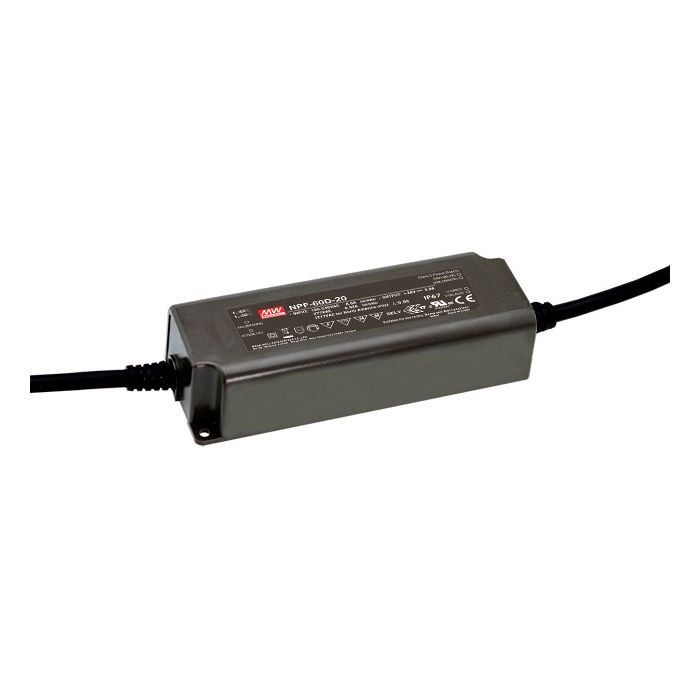

NPF-60D-42 – Mean Well LED Driver NPF-60D-42 Series 1.43A 60.06W For Sale

$23.25

20 people are viewing this right now
4 products sold in last 9 hours
Selling fast! Over 8 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit Over Current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC)  Full RangeCooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGClass 2 power unitSuitable for dry, damp, wet locationNo load power consumption <0.5W5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
60

Output Voltage
42V

DC Output Adjustment
25.2-42V

Dimensions
150x 53x 35

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A.

Input Voltage
90-305VAC

Safety Standards
UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1

Output Voltage Options
Single

Working Temperature
-40-+70°C

PDF Datasheet
NPF-60D-spec.pdf
