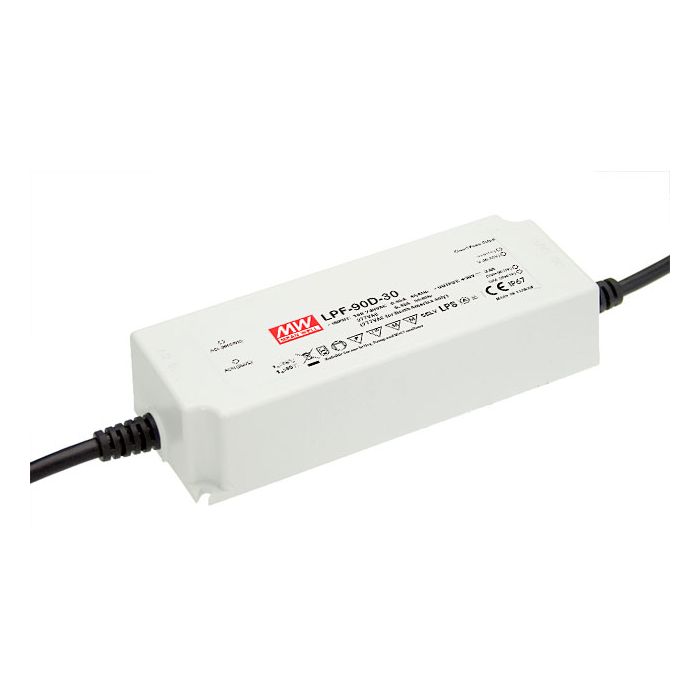

LPF-90D-30 – Mean Well Dimmable LED Driver LPF-90D-30 90W 30V Supply
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Fully encapsulated with IP67 levelProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input (up to 305VAC) Full RangeBuilt-in active PFC functionFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
90
Output Voltage
30V
DC Output Adjustment
N A
Dimensions
161 x 61 x 36
EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024
Input Voltage
90~305VAC; 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-10~+60°C
PDF Datasheet
LPF-90D-spec_12.pdf
