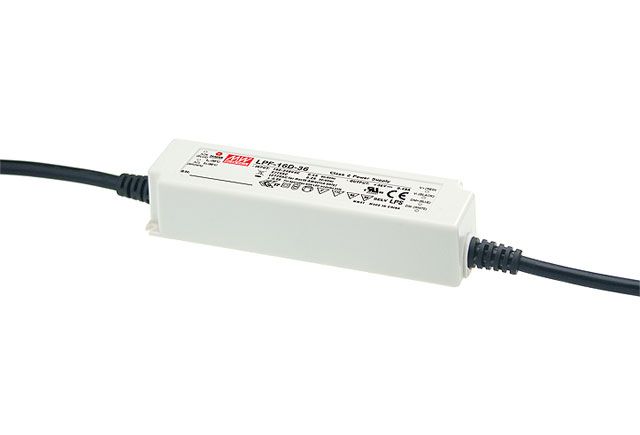

LPF-16D-30 – Mean Well Dimmable LED Driver LPF-16D-30 16W 30V For Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance)Built-in active PFC functionProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input (up to 305VAC) Full RangeFully isolated plastic case with IP30 levelIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
16
Output Voltage
30V
Dimmable (Type)
1-10VDC, PWM signal, resistance
DC Output Adjustment
N A
Dimensions
148 x 40 x 30
EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~305VAC; 127~431VDC
Safety Standards
Design refer to UL8750 ENEC EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+70°C (refer to output derating curve)
PDF Datasheet
LPF-16D-spec_11.pdf
