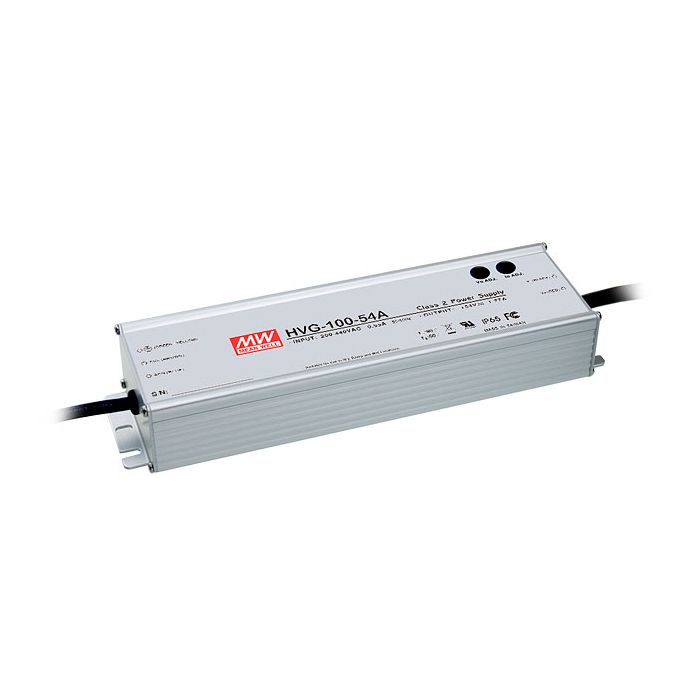

HVG-100-S – Mean Well HVG-100 Series LED Driver 100W 15V – 54V on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)Wide input range: 180~480VACProtections: Short circuit Over voltage Over temperatureOther features:High efficiency up to 92%Built-in active PFCCooling by free air convectionC.V. + C.C. mode designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP67 design 5 years warranty
More Information
Output Wattage (W)
100
Output Voltage
Choose Option
DC Output Adjustment
+ -10% rated output voltage
EMC Standards
Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
180~480VAC, 254~679VDC
Safety Standards
Design refer to UL8750, TUV EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40 ~ +70°C(Refer to Derating Curve )
PDF Datasheet
HVG-100-spec.pdf
