DIN Rail 4 Channles DALI-2 Relay SR-2701-DT7 Fashion
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
SR2701SN

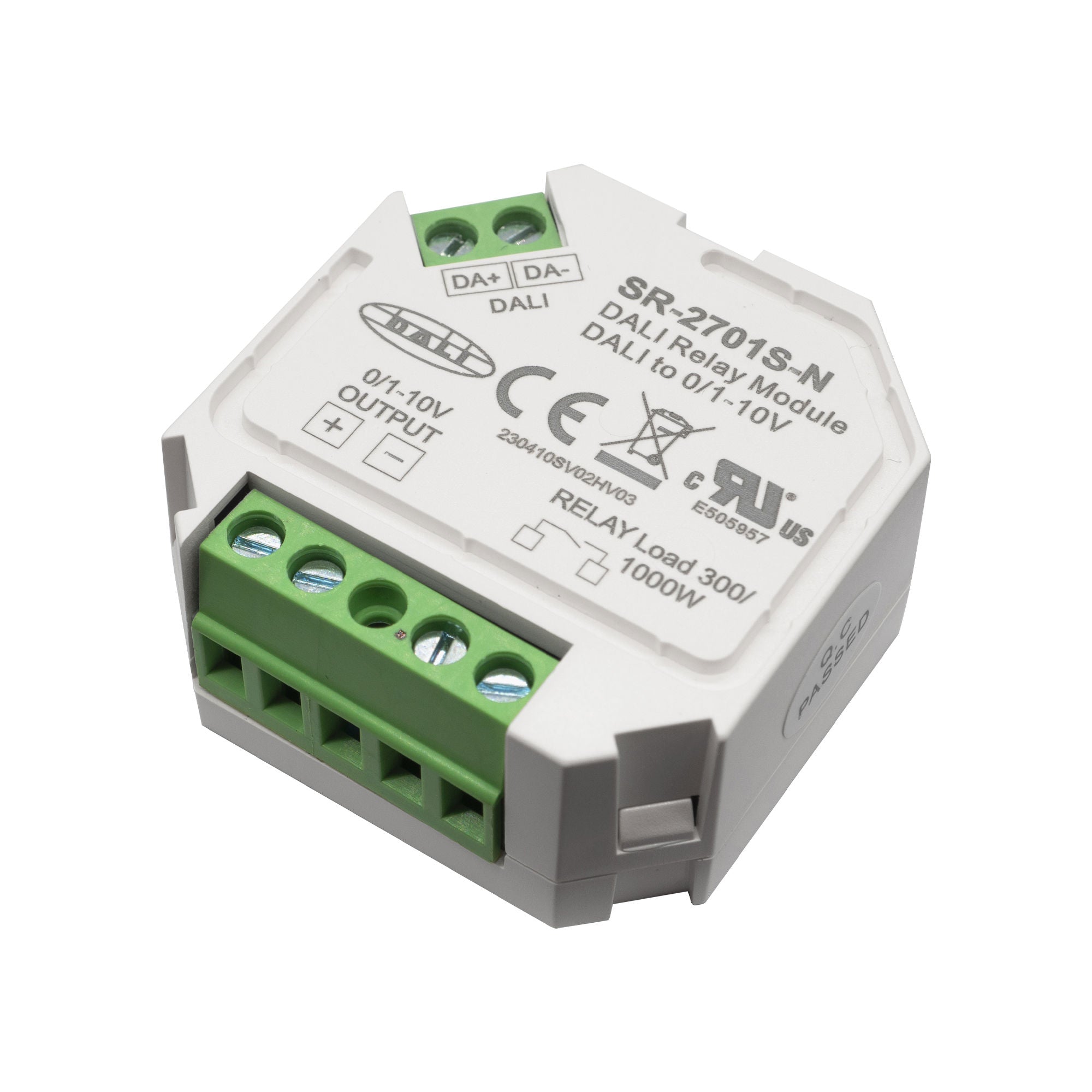

The DALI Relay Module plus DALI to 0 1-10V converter which is capable of switching both AC and DC loads and controlling 0 1-10V dimmable loads. The max. switching voltage for AC loads is 250V, and the max switching voltage for DC loads is 30V. The Dali RM enables to integrate existing loads which do not have DALI input into DALI circuit and switch on off the loads. The DALI to0 1-10V dimmable loads into DALI circuit and control the loads via DALI.
Â
The max. load capacity for conventional incandescent and halogen light sources is 1000W @ 230V, and max. load capacity for LED light sources 300W @ 230V. It is easy to be installed into existing standard wall boxes or mounted on35mm DIN rail with extra mounting bracket.
Â
Key Features
- DALI relay module + DALI to 0 1-10V converter 2 in 1
- Enable to switch power of the 0 1-10V load through the relay
- DALI bus powered, no extra power supply required
- 1 DALI address can be assigned by DALI master controller
- Control of one standard contactor
- Compact relay module for controlling a standard contactor via DALI
- Loads that do not have DALI input can therefore be integrated in the DALI circuit
- The loads can be switched on and off via DALI
- Mini size, easy to be installed into a standard wall box
- IP20
-
