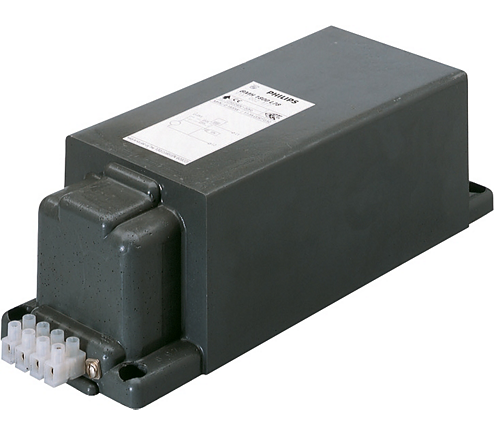

BSN 1000 L78 230 240V 50Hz



Specifications

General Information

Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
L78-A2
Design
HP-257
Lamp type
SON
Number of lamps
1 piece unit
Operating and Electrical

Input Voltage
230 V (default) or 240 V
Input frequency
50 Hz
Input voltage (multi-tab)
230 240
Power factor 100% load (nom.)
0.87
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Input current with PF correction
5.40 A
Input current without PF Correction
10.30 A
Power factor without PF compensation (nom.)
0.50
Power losses (nom.)
54.0 W
Wiring

Wire strip length
7.0 mm
Ballast contact wire cross section
0.70-6.00 mm²
Connector type
Screw
System characteristics

Capacitor
100µF 250V
Rated ballast-lamp power
1000 W
Recommended ignitor
Series ignitor – SN 56 (913619669966) SN 59 (913619659966)

Temperature

T storage (max.)
80 °C
T storage (min.)
-25 °C
T-winding (max.)
130 °C
Delta-T normal conditions
70 °C
Approval and Application

Approval marks

CE marking

ENEC certificate

Product Data

Full product code
871150006236900
Order product name
BSN 1000 L78-A2 230 240V 50Hz HP-257
EAN UPC – product
8711500996640
Order code
06236900
Local order code
BSN1000L78
SAP numerator – quantity per pack
1
Numerator – packs per outer box
1
SAP material
913700217503
SAP net weight (piece)
12.700 kg
