4FT T8 Dali Dimmable LED Tubes Please select Single or Twin Fitting Cheap

$20.59

29 people are viewing this right now
11 products sold in last 17 hours
Selling fast! Over 14 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

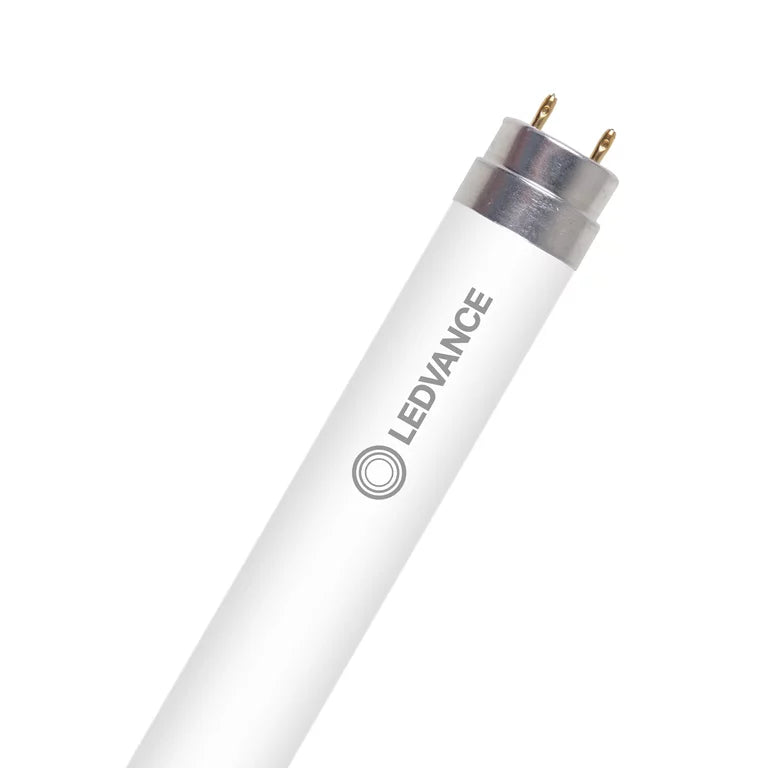

LEDVANCE LED TUBE T8 EXTERNAL P



Singles Pack  1 Tube 1 Driver

Twin Pack 2 Tubes 1 Driver

For sale to UK Customers only

Product benefits

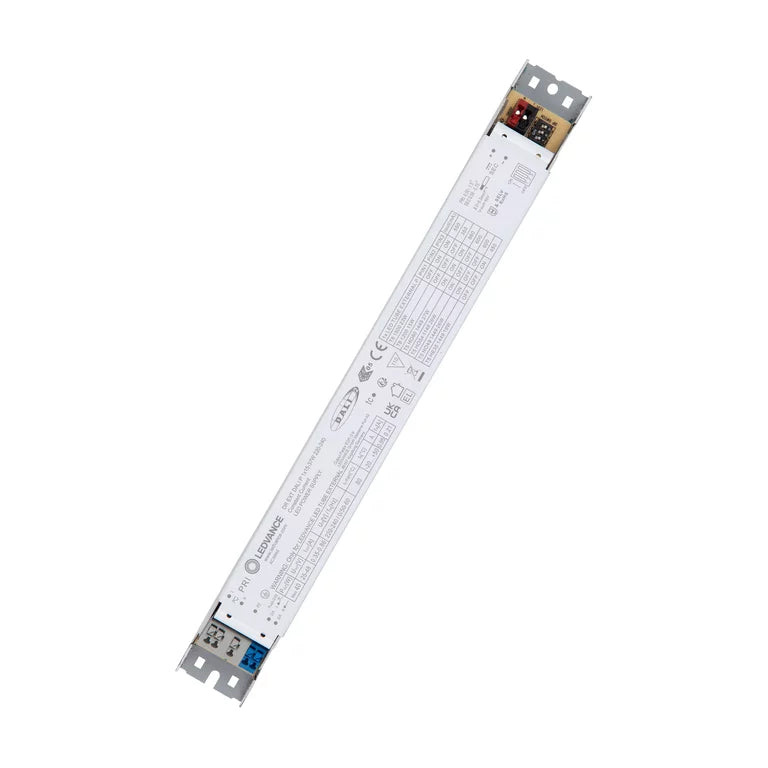

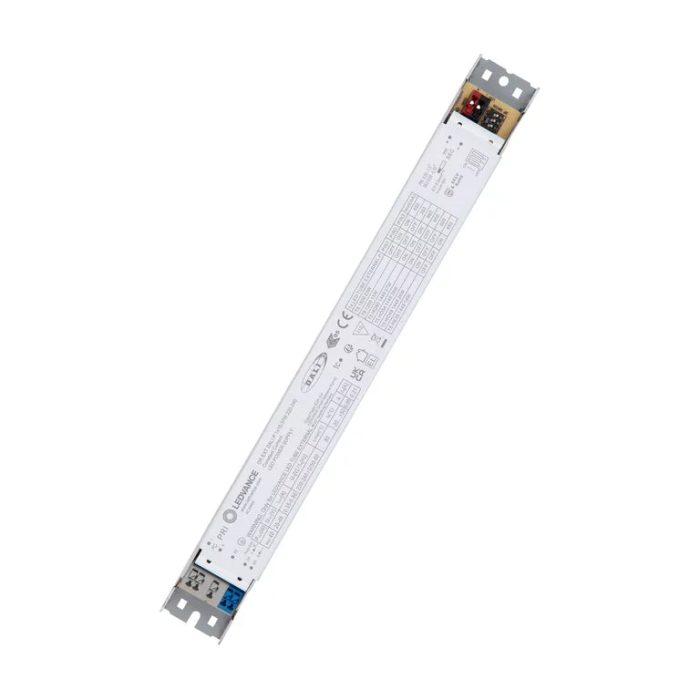

  • Compatible with LEDVANCE DRIVER LED TUBE DALI EXTERNAL
  • Shatter protection thanks to special PET coating
  • No bending thanks to glass tube
  • Very high resistance to switching loads
  • Five year guarantee

    • ECHNICAL DATA

      ELECTRICAL DATA

Nominal wattage

 15 W
Construction wattage

 15.00 W
Nominal voltage

 42 V
Claimed equiv. conventional lamp power

 36 W
Nominal current

 350 mA
Type of current

 DC
Inrush current

 4.3 A
Operating frequency

 0 Hz
Mains frequency

 0 Hz
Total harmonic distortion

 < 20 %
Power factor λ

 0.90

PHOTOMETRICAL DATA

Luminous flux

 2400 lm
Luminous efficacy

 160 lm W
Lumen main.fact.at end of nom.life time

 0.70
Light color (designation)

 Cool White
Color temperature

 4000 K
Color rendering index Ra

 80
Light color

 840
Standard deviation of color matching

 ≤5 sdcm
Rated LLMF at 6,000 h

 0.80
Flickering metric (Pst LM)

 <1
Stroboscope effect metric (SVM)

 <0,4

LIGHT TECHNICAL DATA

Beam angle

 190 °
Warm-up time (60 %)

 ‹ 2.00 s
Starting time

 < 1.0 s
Rated beam angle (half peak value)

 190.00 °

DIMENSIONS & WEIGHT

Overall length

 1200.00 mm
Diameter

 27.00 mm
Maximum diameter

 27 mm
Product weight

 190.00 g

TEMPERATURES & OPERATING CONDITIONS

Ambient temperature range

 -20…+50 °C
Maximum temperature at tc test point

 60 °C

LIFESPAN

Lifespan

 50000 h
Number of switching cycles

 200000
Lumen maintenance at end of serv

 0.70
Rated lamp survival factor at 6,000

 ≥ 0.90

ADDITIONAL PRODUCT DATA

Base (standard designation)

 G13
Mercury content

 0.0 mg
Product remark

 Single sided LED TUBE (one-sided DC input ) complying with safety requirement acc. IEC 62776:2014. Safety protection against electrical shock in misuse (ECG CCG Mains operation).

CAPABILITIES

Dimmable

 Yes

CERTIFICATES & STANDARDS

Energy efficiency class

 D 1)
Energy consumption

 15.00 kWh 1000h
Type of protection

 IP20
Standards

 CE
Photobiological safety group acc. to EN62778

 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

COUNTRY-SPECIFIC CATEGORIZATIONS

Order reference

 LEDTUBE T8 EXT

LOGISTICAL DATA

Temperature range at storage

 -20…+80 °C

ENERGY LABELLING REGULATION DATA ACC EU 2019 2015

Lighting technology used

 LED
Non-directional or directional

 NDLS
Mains or non-mains

 NMLS
Light source cap-type (or other electric interface)

 G13
Connected light source (CLS)

 No
Color-tuneable light source

 No
Envelope

 No
High luminance light source

 No
Anti-glare shield

 No
Correlated colour temperature type

 SINGLE_VALUE
Claim of equivalent power

 No
Length

 1200.00 mm
Height

 27.00 mm
Width

 27.00 mm
Chromaticity coordinate x

 0,381
Chromaticity coordinate y

 0,379
R9 Colour rendering index

 0.00
Beam angle correspondence

 SPHERE_360
Survival factor

 0,90
Displacement factor

 0,90
LED light source replaces a fluorescent light source

 No
EPREL ID

 1161823
Model number

 AC39952
options

840 Single, 865 Single, 840 Twin, 865 Twin
